Vac & Air/Busch/Catalogue

Busch · MINK MW 0332 B

MINK MW 0332 B

Data coverage & sourcesCompare this modelAsk about this model
ClawOil-freeOEM data12 values carry a verification flag

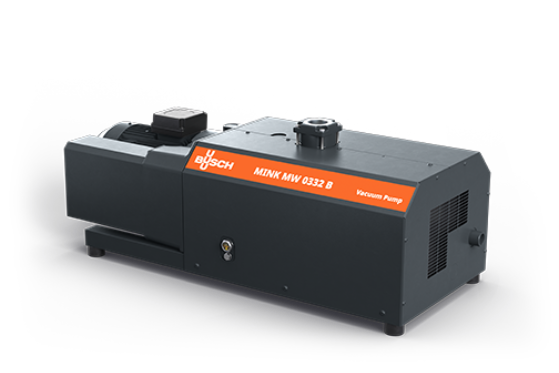

Busch MINK MW 0332 B

Image: Busch

Pumping speed
330 m³/h
Ultimate pressure
0.8 mbar
Motor power
9.02 kW
Noise level
73 dB(A)

Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.

Technical data

Source: Busch product page · retrieved 2026-10-01
As publishedISO 50 Hz; rangeISO 50 Hz; gas temperature rangeISO 50 HzISO 50 Hz; at ultimate pressureISO 50 Hz; (ISO 2151) at ultimate pressureISO 50 Hz; approx.ISO 50 Hz; (L x W x H)ISO 60 Hz; rangeISO 60 Hz; gas temperature rangeISO 60 HzISO 60 Hz; at ultimate pressureISO 60 Hz; (ISO 2151) at ultimate pressureISO 60 Hz; approx.ISO 60 Hz; (L x W x H)US 60 HzUS 60 Hz; (ISO 2151), KpA = 3 dBUS 60 Hz; approx.US 60 Hz; (L x W x H)
Ambient temperature range
Ambient temperature
0 ... 40 °C °C
oem source
Source · 2026-10-01
0 ... 40 °C °C
oem source
Source · 2026-10-01
Inlet gas temperature range
Inlet connection
0 ... 40 °C °C
oem source
Source · 2026-10-01
0 ... 40 °C °C
oem source
Source · 2026-10-01
Nominal pumping speed
Pumping speed
280 m³/h m³/h
oem source
Source · 2026-10-01
330 m³/h m³/h
oem verified
Source · 2026-10-01
194 ACFM ACFM
oem source
Source · 2026-10-01
Ultimate pressure
0.8 hPa (mbar) hPa (mbar)
oem verified
Source · 2026-10-01
0.8 hPa (mbar) hPa (mbar)
oem verified
Source · 2026-10-01
0.6 TORR TORR
oem source
Source · 2026-10-01
Nominal motor rating
Motor power
7.5 kW kW
oem source
Source · 2026-10-01
9.5 kW kW
oem verified
Source · 2026-10-01
12.1 hp hp
oem source
Source · 2026-10-01
Power consumption at ultimate pressure
Power consumption
3.7 kW kW
oem source
Source · 2026-10-01
4.7 kW kW
oem verified
Source · 2026-10-01
Nominal motor speed
Speed
3000 min⁻¹ min⁻¹
oem source
Source · 2026-10-01
3600 min⁻¹ min⁻¹
oem verified
Source · 2026-10-01
3600 rpm rpm
oem source
Source · 2026-10-01
Permitted motor speed range
1200 ... 3600 min⁻¹ min⁻¹
oem source
Source · 2026-10-01
1200 ... 3600 min⁻¹ min⁻¹
oem source
Source · 2026-10-01
Sound pressure level (ISO 2151) at ultimate pressure
Noise level
70 dB(A) dB(A)
oem source
Source · 2026-10-01
73 dB(A) dB(A)
oem verified
Source · 2026-10-01
Oil capacity
1.2 l l
oem verified
Source · 2026-10-01
1.2 l l
oem verified
Source · 2026-10-01
1.05 qts. qts.
oem source
Source · 2026-10-01
Weight approx.
Weight
325 kg kg
oem verified
Source · 2026-10-01
325 kg kg
oem verified
Source · 2026-10-01
716 Lbs. Lbs.
oem source
Source · 2026-10-01
Dimensions (L x W x H)
Dimensions
1313 x 510 x 477 mm mm
oem source
Source · 2026-10-01
1313 x 510 x 477 mm mm
oem source
Source · 2026-10-01
51.7 x 20.1 x 18.8 inches inches
oem source
Source · 2026-10-01
Gas inlet
Inlet connection
G 2"
oem source
Source · 2026-10-01
G 2"
oem source
Source · 2026-10-01
G 2"
oem source
Source · 2026-10-01
Gas outlet
Outlet connection
R 1¼"
oem source
Source · 2026-10-01
R 1¼"
oem source
Source · 2026-10-01
R 1¼"
oem source
Source · 2026-10-01
Sound pressure level (ISO 2151), KpA = 3 dB
Noise level
73 dB(A) dB(A)
oem verified
Source · 2026-10-01

Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.

Reviewed operating performance · 60 Hz

Loading reviewed performance…

Documents

Documents open on the manufacturer’s site.

Not on file yet

  • MissingBusch's parts drawing (exploded view) for the MINK MW 0332 B

We don’t have these from Busch yet. A specialist can still help you find the right part for the MINK MW 0332 B.

Ask a specialistWork at Busch? Add it in the manufacturer portal
