Busch · PHENIX SR 0400/0500 A/E

PHENIX SR 0400 E

Data coverage & sources Compare this model Ask about this model

Central Vacuum SystemsOEM data11 values carry a verification flag

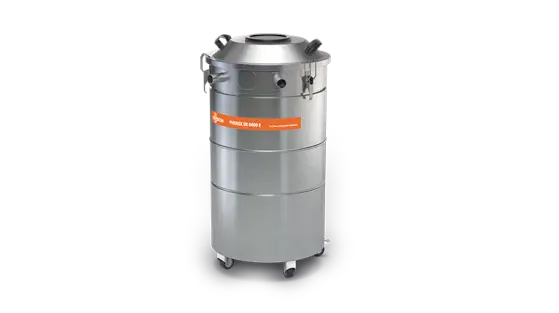

Busch PHENIX SR 0400 E

Image: Busch

Pumping speed: 275 m³/h
Max. vacuum: 180 mbar
Motor power: 1.75 kW
Noise level: 71 dB(A)

Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.

Technical data

Source: Busch product page · retrieved 2026-10-01

As published	ISO 50 Hz	ISO 50 Hz; (ISO 2151), KpA = 3 dB	ISO 50 Hz; approx.	ISO 50 Hz; (H x Ø)	ISO 60 Hz	ISO 60 Hz; (ISO 2151), KpA = 3 dB	ISO 60 Hz; approx.	ISO 60 Hz; (H x Ø)	US	US; approx.	US; (H x Ø)
Voltage	400 V ±10% V ±10% oem source Source · 2026-10-01				460 V ±10% V ±10% oem verified Source · 2026-10-01
Nominal pumping speed Pumping speed	230 m³/h m³/h oem source Source · 2026-10-01				275 m³/h m³/h oem verified Source · 2026-10-01
Max. differential pressure Max. vacuum	180 hPa (mbar) hPa (mbar) oem verified Source · 2026-10-01				180 hPa (mbar) hPa (mbar) oem verified Source · 2026-10-01
Nominal motor rating Motor power	1.5 kW kW oem source Source · 2026-10-01				1.75 kW kW oem verified Source · 2026-10-01
Nominal motor speed Speed	2879 min⁻¹ min⁻¹ oem source Source · 2026-10-01				3476 min⁻¹ min⁻¹ oem verified Source · 2026-10-01
Filling capacity	80 l l oem verified Source · 2026-10-01				80 l l oem verified Source · 2026-10-01				100 l l oem verified Source · 2026-10-01
Sound pressure level (ISO 2151), KpA = 3 dB Noise level		68 dB(A) dB(A) oem source Source · 2026-10-01				71 dB(A) dB(A) oem source Source · 2026-10-01
Weight approx. Weight			65 kg kg oem verified Source · 2026-10-01				65 kg kg oem verified Source · 2026-10-01			70 Lbs. Lbs. oem source Source · 2026-10-01
Dimensions (H x Ø) Dimensions				1022 x 533 mm mm oem source Source · 2026-10-01				1022 x 533 mm mm oem source Source · 2026-10-01			39.4 x 20.5 inches inches oem source Source · 2026-10-01
Gas inlet Inlet connection	2 x Ø40 mm x Ø40 mm oem source Source · 2026-10-01				2 x Ø40 mm x Ø40 mm oem source Source · 2026-10-01				2 x Ø40 inches x Ø40 inches oem source Source · 2026-10-01

Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.

Same family: PHENIX SR 0500 A

Reviewed operating performance · 60 Hz

Loading reviewed performance…

Documents

Product leaflet PHENIX SR 0400_0500 A_E Global ENdatasheet · 2 pp
Instruction manual PHENIX SR 0400 E - 0500 A ENmanual · 36 pp
Instruction manual PHENIX SR 0400 E ENmanual · 32 pp
Pumping speed curveISO
Dimensional drawingISO

Documents open on the manufacturer’s site.

Service parts

No parts published for this model.

Compare with another model

Not on file yet

MissingBusch's parts drawing (exploded view) for the PHENIX SR 0400 E
MissingA parts list for the PHENIX SR 0400 E

We don’t have these from Busch yet. A specialist can still help you find the right part for the PHENIX SR 0400 E.
