Ceccato · Ceccato DRM technical data

DRM100

Data coverage & sourcesCompare this modelAsk about this model
Rotary ScrewOEM data
Ceccato DRM100

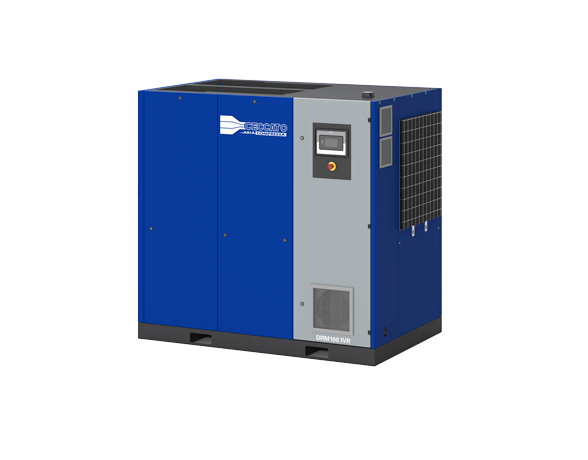

*Photo shows the DRM series, not necessarily this exact model. Image: Ceccato

Free air delivery
803 m³/h
Motor power
75 kW
Noise level
73 dB(A)
Weight
1,190 kg

Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.

Technical data

Source: Ceccato product page · retrieved 2026-10-03
As published7.5 bar version, 50 Hz7,5 bar version, 50 Hz8.5 bar version, 50 Hz8,5 bar version, 50 Hz10 bar version, 50 Hz50 Hz7,4 bar version, 60 Hz6.9 bar version, 60 Hz8.6 bar version, 60 Hz9,1 bar version, 60 Hz10.3 bar version, 60 Hz10,8 bar version, 60 Hz60 Hz
Reference working pressure
7 bar(g)
oem source
Source · 2026-10-03
7 bar(g)
oem source
Source · 2026-10-03
7 bar(g)
oem source
Source · 2026-10-03
8 bar(g)
oem source
Source · 2026-10-03
8 bar(g)
oem source
Source · 2026-10-03
8 bar(g)
oem source
Source · 2026-10-03
9.5 bar(g)
oem source
Source · 2026-10-03
9.5 bar(g)
oem source
Source · 2026-10-03
9,5 bar(g)
oem source
Source · 2026-10-03
6,9 bar(g)
oem source
Source · 2026-10-03
7 bar(g)
oem source
Source · 2026-10-03
7 bar(g)
oem source
Source · 2026-10-03
8 bar(g)
oem source
Source · 2026-10-03
8 bar(g)
oem source
Source · 2026-10-03
8,6 bar(g)
oem source
Source · 2026-10-03
9.5 bar(g)
oem source
Source · 2026-10-03
9.5 bar(g)
oem source
Source · 2026-10-03
10,3 bar(g)
oem source
Source · 2026-10-03
Free air delivery
220 l/s
oem source
Source · 2026-10-03
220 l/s
oem source
Source · 2026-10-03
221 l/s
oem source
Source · 2026-10-03
213 l/s
oem source
Source · 2026-10-03
213 l/s
oem source
Source · 2026-10-03
213 l/s
oem source
Source · 2026-10-03
197 l/s
oem source
Source · 2026-10-03
197 l/s
oem source
Source · 2026-10-03
197 l/s
oem source
Source · 2026-10-03
223 l/s
oem source
Source · 2026-10-03
223 l/s
oem source
Source · 2026-10-03
223 l/s
oem source
Source · 2026-10-03
210 l/s
oem source
Source · 2026-10-03
210 l/s
oem source
Source · 2026-10-03
209 l/s
oem source
Source · 2026-10-03
193 l/s
oem source
Source · 2026-10-03
193 l/s
oem source
Source · 2026-10-03
192 l/s
oem source
Source · 2026-10-03
Max. working pressure
10 bar(g)
oem source
Source · 2026-10-03
10 bar(g)
oem source
Source · 2026-10-03
10 bar(g)
oem source
Source · 2026-10-03
10,8 bar(g)
oem source
Source · 2026-10-03
10.3 bar(g)
oem source
Source · 2026-10-03
10.3 bar(g)
oem source
Source · 2026-10-03
Motor power
75 kW
oem source
Source · 2026-10-03
75 kW
oem source
Source · 2026-10-03
75 kW
oem source
Source · 2026-10-03
75 kW
oem source
Source · 2026-10-03
75 kW
oem source
Source · 2026-10-03
75 kW
oem source
Source · 2026-10-03
Noise level
72 dB(A)
oem source
Source · 2026-10-03
72 dB(A)
oem source
Source · 2026-10-03
72 dB(A)
oem source
Source · 2026-10-03
73 dB(A)
oem source
Source · 2026-10-03
73 dB(A)
oem source
Source · 2026-10-03
73 dB(A)
oem source
Source · 2026-10-03
Weight
1417 kg
oem source
Source · 2026-10-03
1189 kg
oem source
Source · 2026-10-03
1189 kg
oem source
Source · 2026-10-03
1189 kg
oem source
Source · 2026-10-03
1189 kg
oem source
Source · 2026-10-03
1417 kg
oem source
Source · 2026-10-03

Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.

Same family: DRM120, DRM75
