Gast · 1065-V2A

1065-V2A

Data coverage & sourcesCompare this modelAsk about this model
Oil-Lubricated Rotary VaneOEM data

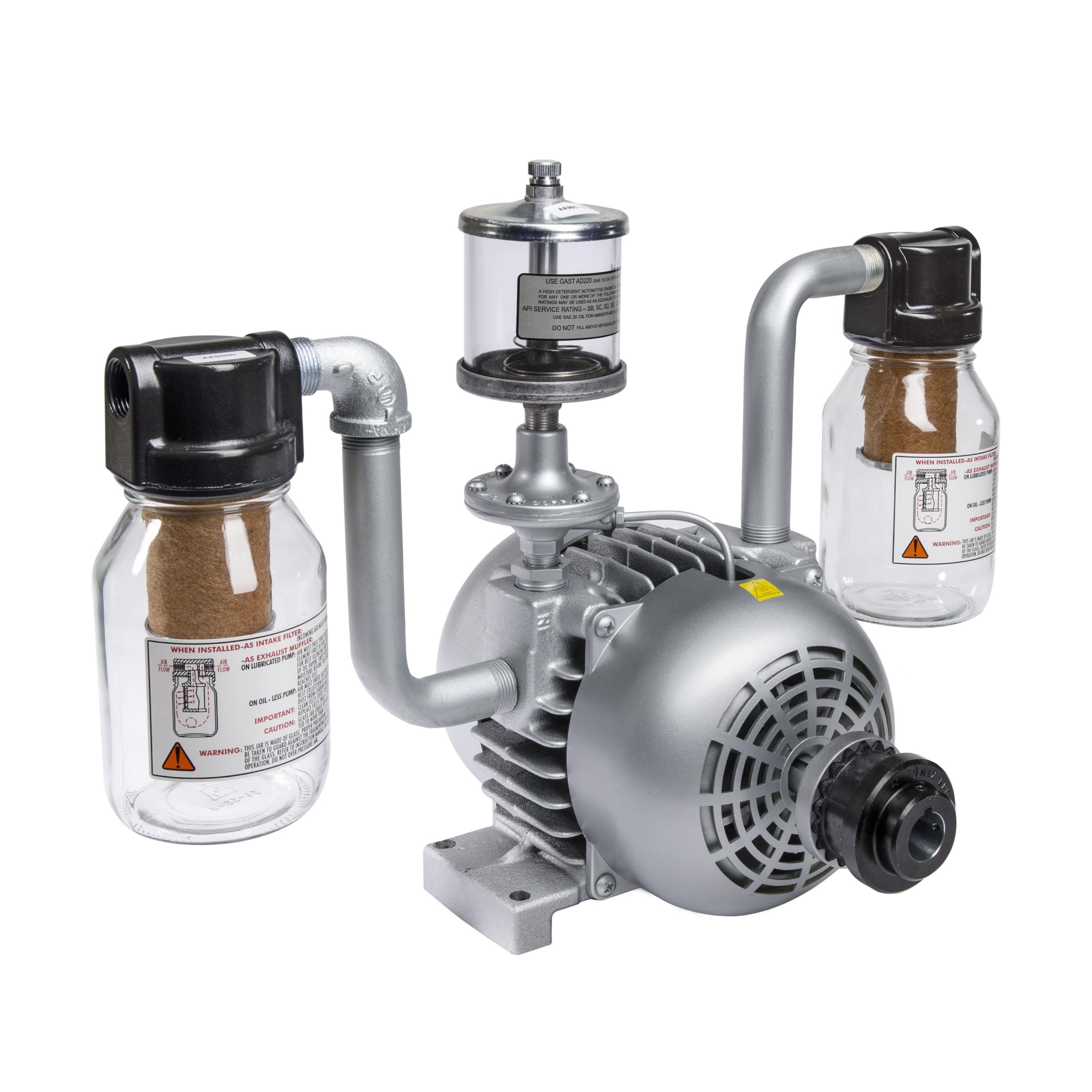

Gast 1065-V2A

Image: Gast

Weight
10.4 kg
Pumping speed
14.4 m³/h
Noise level
77 dB(A)
Max. vacuum
28 inHg

Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.

Technical data

Source: Gast product page · retrieved 2026-10-05
As publishedValue[lb][kg]60 Hz; [cfm]60 Hz; [lpm][DBA][in hg][in][mm]Stated for the whole series: "Max Pressure Up To 5 PSI"
HP
Motor power
0.5
oem source
Source · 2026-10-05
Weight [lb]
Weight
23 lb
oem source
Source · 2026-10-05
Weight [kg]
Weight
10 kg
oem source
Source · 2026-10-05
Open Flow [cfm]
Pumping speed
8.5 cfm
oem source
Source · 2026-10-05
Open Flow [lpm]
Pumping speed
241 lpm
oem source
Source · 2026-10-05
Regulatory
CE
oem source
Source · 2026-10-05
Phase
None
oem source
Source · 2026-10-05
COO
US
oem source
Source · 2026-10-05
Sound Level [DBA]
Noise level
77 DBA
oem source
Source · 2026-10-05
Max Vacuum [in hg]
Max. vacuum
28 in hg
oem source
Source · 2026-10-05
Dimensions [in]
Dimensions
9.38 L x 18.37 W x 14.38 H L x 18.37 W x 14.38 H in
oem source
Source · 2026-10-05
Dimensions [mm]
Dimensions
238.3 L x 466.6 W x 365.3 H L x 466.6 W x 365.3 H mm
oem source
Source · 2026-10-05
Max Pressure
Max. pressure
5 psiS
oem source
Source · 2026-10-05

Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.

S stated once for the whole series by the manufacturer

Explore the parts

1065-V2A, pulled apart

Feet1Cooling fan and guard2Coupling3Bearings4Shaft seal5End plate (drive side)6Cylinder / housing7Rotor and shaft8Vanes9Gaskets and O-rings10Exhaust box / oil reservoir11Exhaust filters12Oil13Gas ballast and relief valves14Inlet filter15Screws, washers, pins16

This model’s parts, by where they sit

Our drawing of the machine type, with the 1065-V2A's own parts from Gast's lists. Side view along the shaft. Oil-free (dry) pumps have no exhaust box oil, sight glass or oil filter; their exhaust filter is a dust filter.

Reviewed operating performance · 60 Hz

Loading reviewed performance…

Service parts · 84

Kit6
Rotating parts22
Filtration16
Seals and gaskets8
Lubrication3
Fittings and hardware5
Housing and covers22
Other parts2

Part numbers from Gast’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.

Compare with another model

Parts diagrams

Exploded views from Gast’s own documents, with each position and part number as printed. Select a part to see what it fits, who sells it and what replaces it.

Exploded view · O&M Manual: 65_LUBRICATED_70-500_J-1.pdf, page 631 positions

The positions on this drawing haven’t been placed yet: choose a position in the list for its part. Drag to move, pinch or Ctrl + scroll to zoom.

Select a part on the drawing or in the list to see its number, what it fits and where to get it. Turn on “select several” to build one quote for many parts.

Pos.Part numberDescriptionQty
AC101EBODY
AC101FBODY
AC681ABODY
AC860BODY
AH345BODY
AH355BODY
AA502END PLATE
AA846DEAD END PLATE
AA851DEAD END PLATE
AH192ROTOR ASSEMBLY
AH428ROTOR ASSEMBLY
D1322DRIVE END PLATE
AA508AROTOR AND SHAFT ASSEMBLY
AA846DEAD END PLATE
AA851DEAD END PLATE
D1322ADEAD END PLATE
AC840ROTOR ASSEMBLY
AC843AROTOR ASSEMBLY
D334HROTOR AND SHAFT ASSEMBLY
AH206FOOT BRACKET
AB339ADRIVE END CAP
B340CCOOLING FAN
AC684AFAN GUARD
AH198FAN COUPLING ASSEMBLY
AH198-1FAN COUPLING ASSEMBLY
AC326ACOOLING FAN
AC684AFAN GUARD
AH194AFAN GUARD
AH567BODY SPACER
AC102BFAN GUARD
AC326CCOOLING FAN
AH203DEAD END PLATE
AB337BELLEVILLE SPRINGS
AC326BFAN
AB136DCOUPLING KEY
AB338WASHER
AA960-2OIL RESERVOIR ASSEMBLY
AB335SNAP RING
AC102BFAN GUARD
AA856DRIVE END CAP
AA960-2OIL RESERVOIR ASSEMBLY
AG466DEAD END CAP
AC326BFAN
AG467END CAP GASKET
B343BINTAKE FILTER ASSEMBLY
AC102BFAN GUARD
AH194AFAN GUARD
AA800CINTAKE FILTER ASSEMBLY-VACUUM
V525EXHAUST MUFFLER AND OIL TRAP
AC393CARTRIDGE
AA125GLASS JAR
AA800DEXHAUST MUFFLER AND OIL TRAP
AA960-1OIL RESERVOIR ASSEMBLY
AA960-2OIL RESERVOIR ASSEMBLY
AA404COVER GASKET
AA401GLASS JAR
AA967AOIL CYLINDER
AA800DEXHAUST MUFFLER AND OIL TRAP
AA900EEXHAUST MUFFLER AND OIL TRAP
AC434MUFFLER ELEMENT ASSEMBLY
AE541CCOUPLING
AA404COVER GASKET
AA405COVER GASKET
AE542ACOUPLING ASSEMBLY
AA401GLASS JAR
AA967AOIL CYLINDER
AC434-1MUFFLER ELEMENT ASSEMBLY
AC436-1MUFFLER ELEMENT ASSEMBLY
AA800CINTAKE FILTER ASSEMBLY-VACUUM
AA900DINTAKE FILTER ASSEMBLY-VACUUM
AA404COVER GASKET
AC433-1INTAKE FILTER ELEMENT ASSEMBLY
AC435-1INTAKE FILTER ELEMENT ASSEMBLY
AA401GLASS JAR
AA967AOIL CYLINDER
AF339HTUBE
AA967AOIL CYLINDER
AF339HTUBE

Positions and part numbers as printed in Gast’s O&M Manual: 65_LUBRICATED_70-500_J-1.pdf, page 6 · view the source document
