Gast · 22D1180-204-1005

22D1180-204-1005

Data coverage & sources Compare this model Ask about this model

ReciprocatingOil-freeOEM data

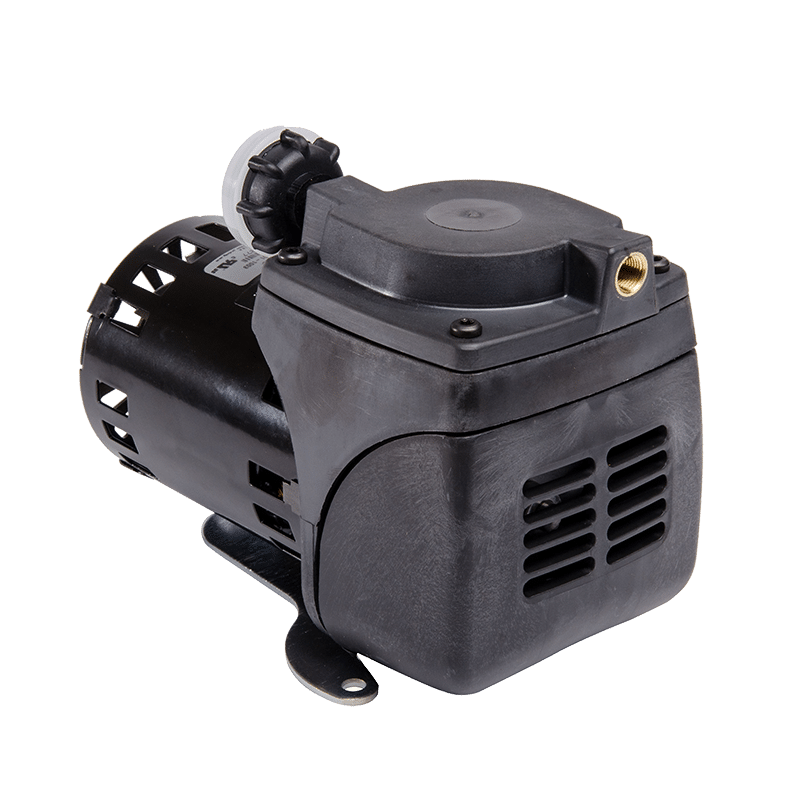

Image: Gast

Weight: 2.27 kg
Free air delivery: 2.21 m³/h
Max. pressure: 1.72 bar
Noise level: 70 dB(A)

Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.

Technical data

Source: Gast product page · retrieved 2026-10-05

As published	Value	DC	[lb]	[kg]	DC; [cfm]	DC; [lpm]	[psi]	[Bar]	[DBA]	[in hg]	[in]	[mm]
HP Motor power	0.125 oem source Source · 2026-10-05
Amps		4 oem source Source · 2026-10-05
Weight [lb] Weight			5 lb oem source Source · 2026-10-05
Weight [kg] Weight				2 kg oem source Source · 2026-10-05
Open Flow [cfm] Free air delivery					1.3 cfm oem source Source · 2026-10-05
Open Flow [lpm] Free air delivery						36.81 lpm oem source Source · 2026-10-05
Voltage		24 oem source Source · 2026-10-05
Regulatory	CE oem source Source · 2026-10-05
Max Pressure [psi] Max. pressure							25 psi oem source Source · 2026-10-05
Max Pressure [Bar] Max. pressure								1.72 Bar oem source Source · 2026-10-05
COO	CN oem source Source · 2026-10-05
Sound Level [DBA] Noise level									70 DBA oem source Source · 2026-10-05
Max Vacuum [in hg] Max. vacuum										22 in hg oem source Source · 2026-10-05
Dimensions [in] Dimensions											7.74 L x 4.15 W x 5 H L x 4.15 W x 5 H in oem source Source · 2026-10-05
Dimensions [mm] Dimensions												196.6 L x 105.4 W x 127.0 H L x 105.4 W x 127.0 H mm oem source Source · 2026-10-05

Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.

Reviewed operating performance · 60 Hz

Loading reviewed performance…

Documents

Series/Model Group Brochure: Gast-Product-Line-Brochure.pdfbrochure · 17 pp
CAD Models: 22D1180-204-1005.stepcad
Tech Data Sheet: DATA-SHEET-COMING-1.pngdatasheet
O&M Manual: 22D_70-6900_H-1.pdfmanual · 16 pp
O&M Manual: 22D_70-6900_H.pdfmanual · 8 pp

Documents open on the manufacturer’s site.

Service parts · 13

Kit1

SERVICE KITK707

Valves3

Piston and diaphragm parts2

Seals and gaskets1

HEAD GASKETACC1018

Fittings and hardware3

Rotating parts1

FANACC1001

Other parts2

Part numbers from Gast’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.

Compare with another model

Parts diagrams

Exploded views from Gast’s own documents, with each position and part number as printed. Select a part to see what it fits, who sells it and what replaces it.

Exploded view · O&M Manual: 22D_70-6900_H-1.pdf, page 67 positions

The positions on this drawing haven’t been placed yet: choose a position in the list for its part. Drag to move, pinch or Ctrl + scroll to zoom.

Select a part on the drawing or in the list to see its number, what it fits and where to get it. Turn on “select several” to build one quote for many parts.

Select several

Pos.	Part number	Description	Qty
	SCR1001	HEAD SCREWS
	HDC1003	HEAD
	VPL1003	VALVE PLATE
	RPL1003	RETAINER PLATE
	DPH1001	DIAPHRAGM (NEOPRENE MATERIAL)
	ACC1001	FAN
	CVR1001	GRILLE

Positions and part numbers as printed in Gast’s O&M Manual: 22D_70-6900_H-1.pdf, page 6 · view the source document
