Gast · MAA-V109-HB
MAA-V109-HB

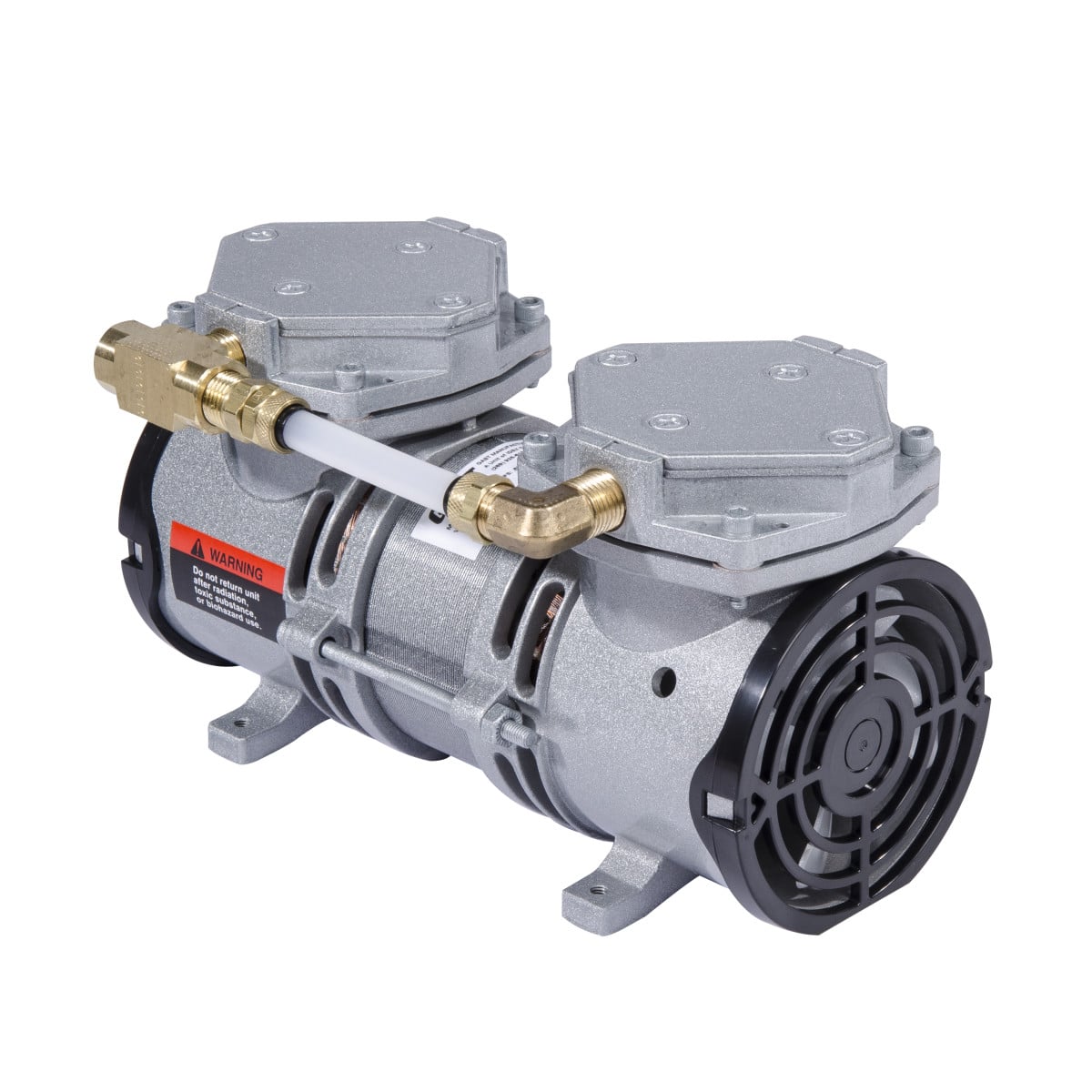

Image: Gast
- Weight
- 3.63 kg
- Free air delivery
- 0.68 m³/h
- Noise level
- 70 dB(A)
- Max. vacuum
- 28 inHg
Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.
Technical data
Source: Gast product page · retrieved 2026-10-05| As published | Value | 50 Hz | 60 Hz | [lb] | [kg] | 50 Hz; [cfm] | 60 Hz; [cfm] | 50 Hz; [lpm] | 60 Hz; [lpm] | [DBA] | [in hg] | [in] | [mm] | Stated for the whole series: "Max Pressure Up To 5 PSI" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP Motor power | ||||||||||||||
| Amps | ||||||||||||||
| Weight [lb] Weight | ||||||||||||||
| Weight [kg] Weight | ||||||||||||||
| Open Flow [cfm] Free air delivery | ||||||||||||||
| Open Flow [lpm] Free air delivery | ||||||||||||||
| Voltage | ||||||||||||||
| Regulatory | ||||||||||||||
| Phase | ||||||||||||||
| COO | ||||||||||||||
| Sound Level [DBA] Noise level | ||||||||||||||
| Max Vacuum [in hg] Max. vacuum | ||||||||||||||
| Dimensions [in] Dimensions | ||||||||||||||
| Dimensions [mm] Dimensions | ||||||||||||||
| Max Pressure Max. pressure |
Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.
S stated once for the whole series by the manufacturer
Reviewed operating performance · 60 Hz
Loading reviewed performance…
Documents
- Series/Model Group Brochure: Gast-Product-Line-Brochure.pdfbrochure · 17 pp
- Tech Data Sheet: MAA-V109-HB_RTD777_A.pdfdatasheet · 1 pp
- O&M Manual 2: DOA-DAA_70-3005_E-1.pdfmanual · 24 pp
- O&M Manual 2: DOA-DAA_70-3005_E.pdfmanual · 8 pp
- O&M Manual: MOA-MAA_70-3000_K-2.pdfmanual · 8 pp
Documents open on the manufacturer’s site.
Service parts · 61
Filtration4
Seals and gaskets4
Piston and diaphragm parts7
Valves11
Fittings and hardware8
Housing and covers6
Controls and instruments2
Part numbers from Gast’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.
Parts diagrams
Exploded views from Gast’s own documents, with each position and part number as printed. Select a part to see what it fits, who sells it and what replaces it.
Exploded view · O&M Manual 2: DOA-DAA_70-3005_E-1.pdf, page 1823 positions · own page
Click a part or its number. Drag to move, pinch or Ctrl + scroll to zoom. Arrows step through positions in the manufacturer's numbering (not an assembly sequence). The manufacturer's drawing shows the parts already pulled apart and gives no assembled positions; Vac & Air does not invent them. Positions were placed automatically from the manufacturer's numbering.
Select a part on the drawing or in the list to see its number, what it fits and where to get it. Turn on “select several” to build one quote for many parts.
| Pos. | Part number | Description | Qty |
|---|---|---|---|
| AA806 | PRESSURE GAUGE | ||
| AF780 | COVER | ||
| AF887 | PRESSURE REGULATOR - RELIEF VALVE | ||
| AE136 | VACUUM GAUGE | ||
| AA550C-V | VACUUM REGULATOR - RELIEF VALVE | ||
| AP522A | HEAD | ||
| AF779 | HEAD | ||
| AP523A | HANDLE | ||
| AF778 | RETAINER PLATE | ||
| AP504 | VALVE PLATE | ||
| AG288 | DIAPHRAGM, VACUUM - RED | ||
| AJ856 | Fan | ||
| AF785B | Fan | ||
| AG774 | Grille | ||
| AG613 | ELBOW | ||
| AG613D | ELBOW | ||
| AF809 | RETAINER PLATE | ||
| AF818A | DIAPHRAGM | ||
| AA929 | FELT SPACER | ||
| AF886 | SPACER | ||
| AT837C | FAN | ||
| AF807 | GRILLE | ||
| AF584A | RUBBER FOOT | ||
| AE941 | POWER CORD | ||
| AF805B | REAR COVER | ||
| AG954 | REAR COVER | ||
| AP519 | VALVE PLATE ASSEMBLY | ||
| BB557 | Retainer plate screws |
Positions and part numbers as printed in Gast’s O&M Manual 2: DOA-DAA_70-3005_E-1.pdf, page 18 · view the source document
Exploded view · O&M Manual 2: DOA-DAA_70-3005_E-1.pdf, page 1415 positions
The positions on this drawing haven’t been placed yet: choose a position in the list for its part. Drag to move, pinch or Ctrl + scroll to zoom.
Select a part on the drawing or in the list to see its number, what it fits and where to get it. Turn on “select several” to build one quote for many parts.
| Pos. | Part number | Description | Qty |
|---|---|---|---|
| AF808 | COVER | ||
| AP500 | HEAD | ||
| AF804 | HEAD | ||
| AP504 | VALVE PLATE | ||
| AF809 | RETAINER PLATE | ||
| AF809 | RETAINER PLATE | ||
| AF818A | DIAPHRAGM | ||
| AF818B | DIAPHRAGM VACUUM - RED | ||
| AA929 | FELT SPACER | ||
| AF818B | DIAPHRAGM VACUUM - RED | ||
| AA929 | FELT SPACER | ||
| AD996 | SPACER | ||
| AD996 | SPACER | ||
| AT837 | FAN - CLOCKWISE | ||
| AT837A | FAN - COUNTERCLOCKWISE | ||
| AT837C | FAN | ||
| AT837A | FAN - COUNTERCLOCKWISE | ||
| AF807 | GRILLE | ||
| AE946 | RIVET | ||
| AP534 | RIVET | ||
| AP519 | VALVE PLATE ASSEMBLY | ||
| AP526 | CRANKCASE COVER | ||
| AP525 | 8-32 × 0.38 SCREW |
Positions and part numbers as printed in Gast’s O&M Manual 2: DOA-DAA_70-3005_E-1.pdf, page 14 · view the source document
