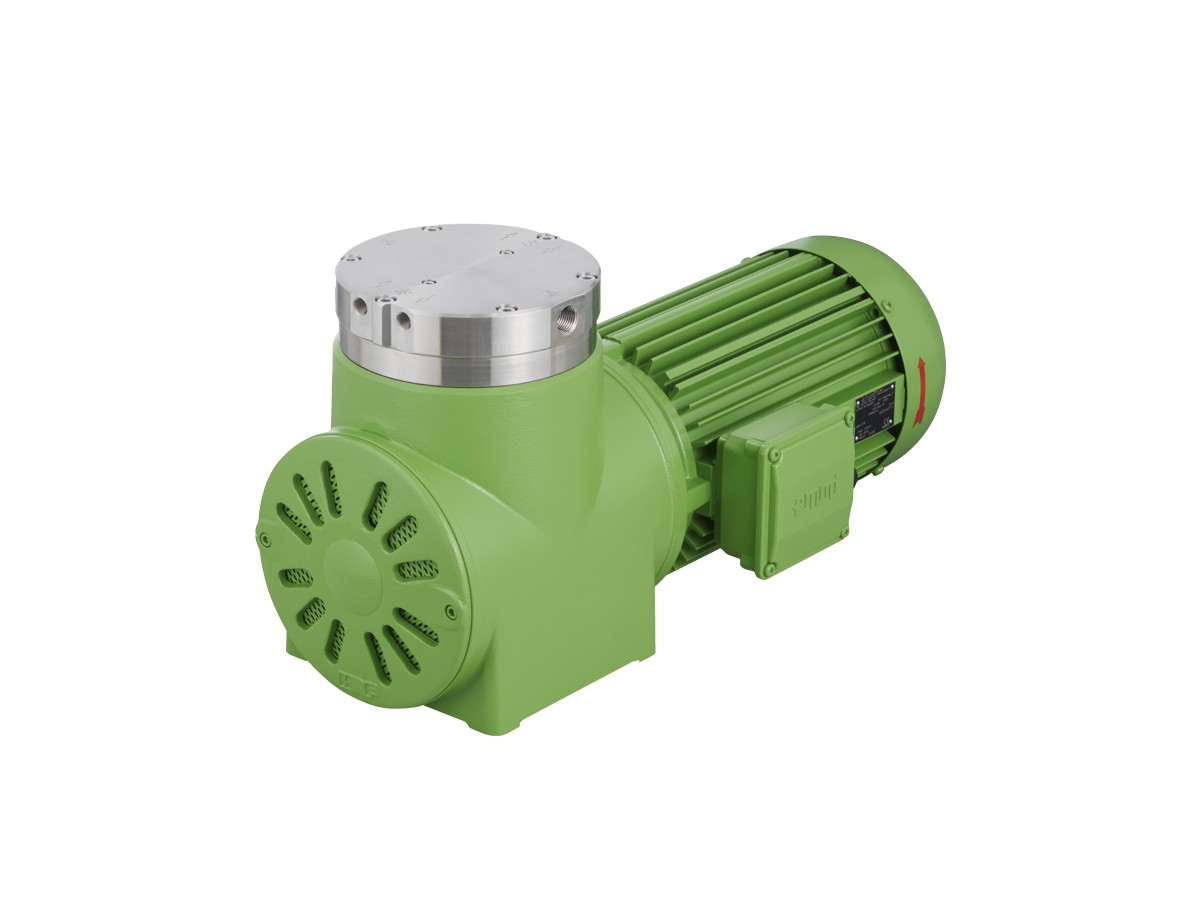

KNF · KNF N 1200 (60 Hz)
N 1200 (60 Hz)
Image: KNF
- Pumping speed
- 9 m³/h
- Max. pressure
- 6 bar
- Ultimate pressure
- 150 mbar
Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.
Technical data
Source: KNF product page · retrieved 2026-10-03| As published | (max.) | gauge | absolute; (max.) |
|---|---|---|---|
| Flow Rate (max.) Pumping speed | |||
| Pressure (max.) Max. pressure | |||
| Ultimate Vacuum (max.) Ultimate pressure |
Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.
Reviewed operating performance · 60 Hz
Loading reviewed performance…
Documents
- Datasheet N 1200 KNF USAdatasheet · 5 pp
- Operating Manualmanual · 60 pp
Documents open on the manufacturer’s site.
Service parts · 4
Kit4
- Spare part set N1200SP.9E (Diaphragm, O-ring, O-ring (only .13), Reed valve, Valve limiter, Screw)308371
- Spare part set N1200SP.13E (Diaphragm, O-ring, O-ring (only .13), Reed valve, Valve limiter, Screw)315478
- Spare part set N1200ST.9E (Diaphragm, O-ring, O-ring (only .13), Reed valve, Valve limiter, Screw)315480
- Spare part set N1200ST.13E (Diaphragm, O-ring, O-ring (only .13), Reed valve, Valve limiter, Screw)315481
Part numbers from KNF’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.
Not on file yet
- MissingKNF's parts drawing (exploded view) for the N 1200 (60 Hz)
We don’t have these from KNF yet. A specialist can still help you find the right part for the N 1200 (60 Hz).
