Becker · BCV 500 FD
BCV 500 FD

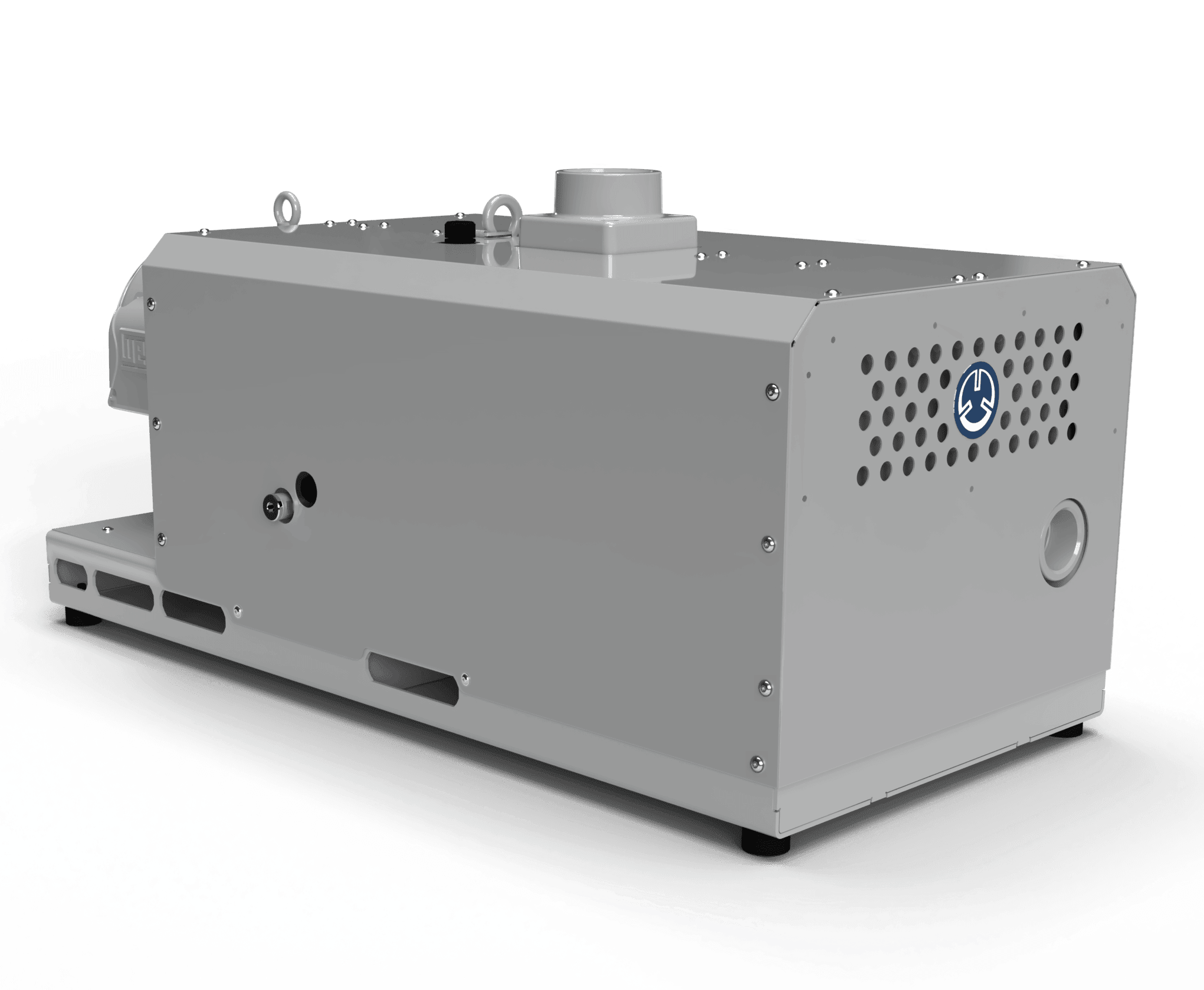

Image: Becker
- Pumping speed
- 600 m³/h
- Motor power
- 11.8 kW
- Noise level
- 77 dB(A)
Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.
Technical data
Source: Becker product page · retrieved 2026-10-01| As published | US; SCFM | US | US; dB(A) | US; without Motor |
|---|---|---|---|---|
| Open Flow SCFM Pumping speed | ||||
| Maximum Vacuum Max. vacuum | ||||
| Horsepower Motor power | ||||
| Noise Level dB(A) Noise level | ||||
| Weight without Motor Weight |
Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.
Reviewed operating performance · 60 Hz
Loading reviewed performance…
Documents
- View Data Sheet (BCV 500 FD)datasheet · 4 pp
- View Operating Manual (BCV 500 FD)manual · 40 pp
- Download Spare Parts List (BCV 500 FD)parts-list · 20 pp
Documents open on the manufacturer’s site.
Service parts · 91
Rotating parts12
Seals and gaskets3
Lubrication3
Fittings and hardware34
- KNURLED NUT00380265500
- THREADED FLANGE00782265500
- CLAMPING WASHER01680165300
- SPACER TUBE06800065300
- SPACER TUBE06800365300
- WASHER06900065300
- PLUG30240008000
- 951018 00000 STIFTSCHRAUBE / STUD / PRISONNIER / L’ASTA A VITE / ESPÁRRAGO91502600000
- COMPRESSION SPRING92861590000
- BOLT94512300000
- HEXAGON SCREW M10X2594523600000
- HEXAGON SCREW M12X3094524200000
- SECHSKANTSCHRAUBE 14 945243 00000 HEX-HEAD SCREW94524300000
- HEXAGON SOCKET SCREW M12X6094531060000
- HEXAGON SOCKET SCREW M8X5094533600000
- HEXAGON SOCKET SCREW M10X4094535200000
- HEXAGON SOCKET SCREW M10X6094535300000
- HEXAGON SOCKET SCREW M6X1094537700000
- HEXAGON SOCKET SCREW M10X6594538600000
- THREADED PIN M10X5094581200000
- Sechskantmutter 116 947104 00000 HEX.NUT94710400000
- SECHSKANTMUTTER 42 947106 00000 HEX.NUT94710600000
- HEXAGON NUT M12X194711130000
- U-SCHEIBE / WASHER / RONDELLE / RONDELLA / ARANDELA94750700000
- CYLINDER PIN94760400000
- CYLINDER PIN94765900000
- KEY94772000000
- KEY94781300000
- RETAINING RING94810202000
- BLIND NUT94878100000
- RING SCREW M1294880310000
- WASHER94945300000
- STUD SCREW M10X9595105400000
- STUD SCREW M8X11095105500000
Housing and covers7
Piston and diaphragm parts3
Other parts21
- SPACER THICKNESS 1,9 mm01140065300
- SPACER01140165500
- SPACER01140265500
- SPACER THICKNESS 2,05 mm01140365300
- SPACER01140365500
- SPACER THICKNESS 2,1 mm01140465300
- SPACER01140465500
- SPACER THICKNESS 2,15 mm01140565300
- SPACER THICKNESS 2,2 mm01140665300
- SPACER THICKNESS 1,8 mm01140965300
- SPACER THICKNESS 1,825 mm01141065300
- SPACER THICKNESS 1,85 mm01141165300
- SPACER THICKNESS 1,875 mm01141265300
- SPACER THICKNESS 1,925 mm01141365300
- SPACER01442565300
- CLAMPING DISC01680165500
- CONNECTING PLATE01833765500
- LANTERN05320065300
- INSULATING SLEEVE74130050000
- THREADED RING92103300000
- CLAMPING SLEEVE95202200000
Part numbers from Becker’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.
Parts diagrams
Exploded views from Becker’s own documents, with each position and part number as printed. Select a part to see what it fits, who sells it and what replaces it.
Exploded view · Download Spare Parts List (BCV 500 FD), page 3106 positions
The positions on this drawing haven’t been placed yet: choose a position in the list for its part. Drag to move, pinch or Ctrl + scroll to zoom.
Select a part on the drawing or in the list to see its number, what it fits and where to get it. Turn on “select several” to build one quote for many parts.
| Pos. | Part number | Description | Qty |
|---|---|---|---|
| 01700265500 | SHAFT | ||
| 01700365500 | SHAFT | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| 01442565300 | SPACER | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 00100765500 | BEARING COVER | ||
| 06370165300 | GEAR | ||
| 94772000000 | KEY | ||
| 06900065300 | WASHER | ||
| 94971200000 | FLAT ROUND HEAD SCREW M6X10 | ||
| 01140365500 | SPACER | ||
| 01140465500 | SPACER | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 01680165300 | CLAMPING WASHER | ||
| 94523600000 | HEXAGON SCREW M10X25 | ||
| 03820265500 | GEAR HOUSING | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| 00100065300 | BEARING COVER | ||
| 94971600000 | FLAT HEAD SCREW M6X16 | ||
| 94765900000 | CYLINDER PIN | ||
| 00080465500 | GEAR COVER | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| 94535200000 | HEXAGON SOCKET SCREW M10X40 | ||
| 94535300000 | HEXAGON SOCKET SCREW M10X60 | ||
| 94512300000 | BOLT | ||
| 54640265500 | MAIN ROTOR | ||
| 54640365500 | SECONDARY ROTOR | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 01680165500 | CLAMPING DISC | ||
| 94524300000 | SECHSKANTSCHRAUBE 14 945243 00000 HEX-HEAD SCREW | ||
| 00010565500 | HOUSING | ||
| 94760400000 | CYLINDER PIN | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 03390065500 | VALVE PLATE | ||
| K1 | SEAL KIT Supplied in kit K1 | ||
| 90200065300 | COUPLING | ||
| 94781300000 | KEY | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 94531060000 | HEXAGON SOCKET SCREW M12X60 | ||
| 95202200000 | CLAMPING SLEEVE | ||
| 94581200000 | THREADED PIN M10X50 | ||
| 94803300000 | COPPER SEALING RING | ||
| 06800365300 | SPACER TUBE | ||
| K2 | OIL SIGHT GLASS SET Supplied in kit K2 | ||
| 06800065300 | SPACER TUBE | ||
| K2 | OIL SIGHT GLASS SET Supplied in kit K2 | ||
| K2 | OIL SIGHT GLASS SET Supplied in kit K2 | ||
| 94880310000 | RING SCREW M12 | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 94945300000 | WASHER | ||
| 94710600000 | SECHSKANTMUTTER 42 947106 00000 HEX.NUT | ||
| 30240008000 | PLUG | ||
| 01832465500 | COVER | ||
| 05320065300 | LANTERN | ||
| 90210065300 | COUPLING | ||
| 90230150000 | FAN WHEEL | ||
| 94537700000 | HEXAGON SOCKET SCREW M6X10 | ||
| 94524200000 | HEXAGON SCREW M12X30 | ||
| 94972200000 | FLAT ROUND HEAD SCREW M6X20 | ||
| 94750700000 | U-SCHEIBE / WASHER / RONDELLE / RONDELLA / ARANDELA | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 94945300000 | WASHER | ||
| 94710600000 | SECHSKANTMUTTER 42 947106 00000 HEX.NUT | ||
| 94972200000 | FLAT ROUND HEAD SCREW M6X20 | ||
| 94971200000 | FLAT ROUND HEAD SCREW M6X10 | ||
| 01832065500 | COVER | ||
| 01833765500 | CONNECTING PLATE | ||
| 01832365500 | COVER | ||
| 01832265500 | COVER | ||
| 00740265500 | SILENCER HOUSING | ||
| 00740365500 | SILENCER HOUSING | ||
| 94533600000 | HEXAGON SOCKET SCREW M8X50 | ||
| 96445200000 | SILENCER TUBE | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 74130050000 | INSULATING SLEEVE | ||
| 94945300000 | WASHER | ||
| 94710600000 | SECHSKANTMUTTER 42 947106 00000 HEX.NUT | ||
| 94878100000 | BLIND NUT | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 01140165500 | SPACER | ||
| 91502600000 | 951018 00000 STIFTSCHRAUBE / STUD / PRISONNIER / L’ASTA A VITE / ESPÁRRAGO | ||
| 01140265500 | SPACER | ||
| 51510165500 | FOOT | ||
| 95105400000 | STUD SCREW M10X95 | ||
| 95105500000 | STUD SCREW M8X110 | ||
| 82760065500 | VALVE HOUSING | ||
| 94711130000 | HEXAGON NUT M12X1 | ||
| 00380165500 | VALVE TAPPET | ||
| 92103300000 | THREADED RING | ||
| 03390099580 | VALVE DISC | ||
| 94710400000 | Sechskantmutter 116 947104 00000 HEX.NUT | ||
| 94801200000 | SEALING RING | ||
| 00380265500 | KNURLED NUT | ||
| 94810202000 | RETAINING RING | ||
| 92861590000 | COMPRESSION SPRING | ||
| 00782265500 | THREADED FLANGE | ||
| 00890365200 | SEAL | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| K3 | OVERHAUL KIT Supplied in kit K3 | ||
| 94538600000 | HEXAGON SOCKET SCREW M10X65 |
Positions and part numbers as printed in Becker’s Download Spare Parts List (BCV 500 FD), page 3 · view the source document
