Pfeiffer Vacuum+Fab Solutions · DuoVane 1.6/3
DuoVane 1.6

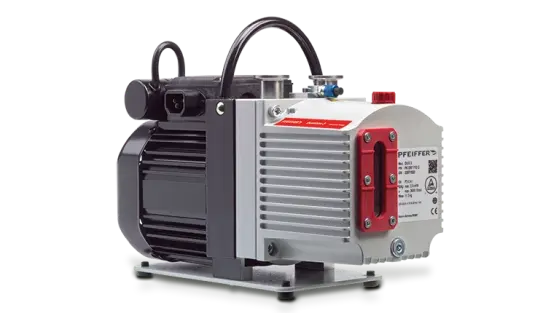

Image: Pfeiffer Vacuum+Fab Solutions
- Pumping speed
- 1.5 m³/h
- Ultimate pressure
- 0.003 mbar
- Motor power
- 0.09 kW
- Noise level
- 42 dB(A)
Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.
Technical data
Source: Pfeiffer Vacuum+Fab Solutions product page · retrieved 2026-10-02| As published | ISO 50 Hz | ISO 50 Hz; (gas-ballast valve closed) | ISO 50 Hz; (gas-ballast valve open) | ISO 50 Hz; (50 Hz) | ISO 50 Hz; approx. | ISO 50 Hz; (L x W x H) | ISO 60 Hz | ISO 60 Hz; (gas-ballast valve closed) | ISO 60 Hz; (gas-ballast valve open) | ISO 60 Hz; (50 Hz) | ISO 60 Hz; approx. | ISO 60 Hz; (L x W x H) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal pumping speed Pumping speed | ||||||||||||
| Ultimate pressure (gas-ballast valve closed) Ultimate pressure | ||||||||||||
| Ultimate pressure (gas-ballast valve open) Ultimate pressure | ||||||||||||
| Motor phase | ||||||||||||
| Nominal motor rating Motor power | ||||||||||||
| Nominal motor speed Speed | ||||||||||||
| Sound pressure level (50 Hz) Noise level | ||||||||||||
| Oil capacity | ||||||||||||
| Weight approx. Weight | ||||||||||||
| Dimensions (L x W x H) Dimensions | ||||||||||||
| Gas inlet Inlet connection | ||||||||||||
| Gas outlet Outlet connection |
Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.
Same family: DuoVane 3
Explore the parts
DuoVane 1.6, pulled apart
This model’s parts, by where they sit
Our drawing of the machine type, with the DuoVane 1.6's own parts from Pfeiffer Vacuum+Fab Solutions's lists. Side view along the shaft. Oil-free (dry) pumps have no exhaust box oil, sight glass or oil filter; their exhaust filter is a dust filter.
Reviewed operating performance · 60 Hz
Loading reviewed performance…
Documents
- Product Leaflet DuoVane 1.6_3_Global ENdatasheet · 2 pp
- Instruction Manual DuoVane 1.6_EN_enmanual · 60 pp
- Instruction Manual DuoVane 3_EN_enmanual · 62 pp
- Pumping speed curveISO
- Dimensional drawingISO
Documents open on the manufacturer’s site.
Service parts · 18
Kit6
- Maintenance kit 2 – maintenance level 2, extended (Standard)PK E01 040 CT
- Maintenance kit 2 – maintenance level 2, extended (M/MC version)PK E01 041 CT
- Maintenance kit 1 – maintenance level 1 (Standard, M/MC version)PK E01 050 CT
- Overhaul kit – maintenance level 3 (Standard)PK E02 040 CT
- Overhaul kit – maintenance level 3 (Standard)PK E02 070 CT
- Set of vanes (Standard, M version)PK E08 030 -T
Rotating parts1
Seals and gaskets1
Part numbers from Pfeiffer Vacuum+Fab Solutions’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.
Not on file yet
- MissingPfeiffer Vacuum+Fab Solutions's parts drawing (exploded view) for the DuoVane 1.6
We don’t have these from Pfeiffer Vacuum+Fab Solutions yet. A specialist can still help you find the right part for the DuoVane 1.6.
