Pfeiffer Vacuum+Fab Solutions · DuoVane 36/70
DuoVane 36

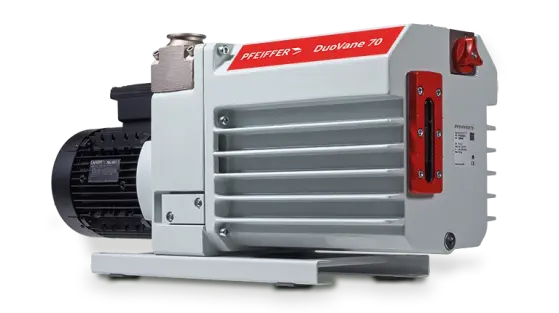

Image: Pfeiffer Vacuum+Fab Solutions
- Pumping speed
- 36 m³/h
- Ultimate pressure
- 0.002 mbar
- Motor power
- 1.3 kW
- Noise level
- 61 dB(A)
Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.
Technical data
Source: Pfeiffer Vacuum+Fab Solutions product page · retrieved 2026-10-02| As published | ISO 50 Hz | ISO 50 Hz; (gas-ballast valve closed) | ISO 50 Hz; (gas-ballast valve open) | ISO 50 Hz; (50 Hz) | ISO 50 Hz; approx. | ISO 50 Hz; (L x W x H) | ISO 60 Hz | ISO 60 Hz; (gas-ballast valve closed) | ISO 60 Hz; (gas-ballast valve open) | ISO 60 Hz; (50 Hz) | ISO 60 Hz; approx. | ISO 60 Hz; (L x W x H) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal pumping speed Pumping speed | ||||||||||||
| Ultimate pressure (gas-ballast valve closed) Ultimate pressure | ||||||||||||
| Ultimate pressure (gas-ballast valve open) Ultimate pressure | ||||||||||||
| Motor phase | ||||||||||||
| Nominal motor rating Motor power | ||||||||||||
| Nominal motor speed Speed | ||||||||||||
| Sound pressure level (50 Hz) Noise level | ||||||||||||
| Oil capacity | ||||||||||||
| Weight approx. Weight | ||||||||||||
| Dimensions (L x W x H) Dimensions | ||||||||||||
| Gas inlet Inlet connection | ||||||||||||
| Gas outlet Outlet connection |
Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.
Same family: DuoVane 70
Explore the parts
DuoVane 36, pulled apart
This model’s parts, by where they sit
Our drawing of the machine type, with the DuoVane 36's own parts from Pfeiffer Vacuum+Fab Solutions's lists. Side view along the shaft. Oil-free (dry) pumps have no exhaust box oil, sight glass or oil filter; their exhaust filter is a dust filter.
