Pfeiffer Vacuum+Fab Solutions · HiPace 300 Plus
HiPace 300 Plus

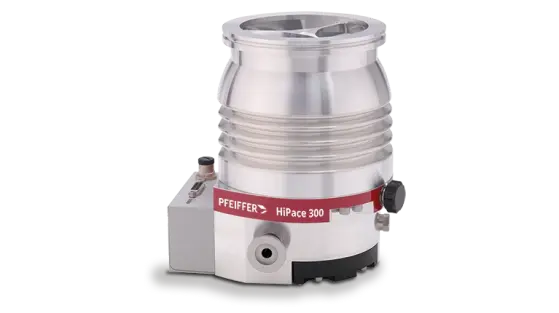

Image: Pfeiffer Vacuum+Fab Solutions
- Pumping speed
- 936 m³/h
- Noise level
- 50 dB(A)
- Weight
- 5.8 kg
Headline ratings converted to common units for comparison; the table below shows each figure exactly as published.
Technical data
Source: Pfeiffer Vacuum+Fab Solutions product page · retrieved 2026-10-04| As published | ISO; for N₂ | ISO; (EN ISO 2151) | ISO; approx. |
|---|---|---|---|
| Pumping speed for N₂ Pumping speed | |||
| Sound pressure level (EN ISO 2151) Noise level | |||
| Weight approx. Weight |
Original extracted values are shown with their source and review status. Multiple values under the same condition remain separate for review.
Reviewed operating performance · 60 Hz
Loading reviewed performance…
Documents
- Product Leaflet HiPace 300 Plus Global ENdatasheet · 3 pp
- Instruction Manual HiPace 300 Plus with TC 110_EN_enmanual · 62 pp
- Instruction Manual HiPace 300 Plus with TC 400_DE_de,EN_enmanual · 128 pp
- Instruction Manual HiPace 300 Plus with TC 400_EN_enmanual · 43 pp
- Pumping speed curveISO
Documents open on the manufacturer’s site.
Service parts · 3
Fittings and hardware2
Other parts1
Part numbers from Pfeiffer Vacuum+Fab Solutions’s parts lists, shop and instruction manuals. Open a part for its other models, replacements and suppliers.
Parts diagrams
Exploded views from Pfeiffer Vacuum+Fab Solutions’s own documents, with each position and part number as printed. Select a part to see what it fits, who sells it and what replaces it.
Exploded view · Instruction Manual HiPace 300 Plus with TC 400_EN_en, page 413 positions
The positions on this drawing haven’t been placed yet: choose a position in the list for its part. Drag to move, pinch or Ctrl + scroll to zoom.
Select a part on the drawing or in the list to see its number, what it fits and where to get it. Turn on “select several” to build one quote for many parts.
| Pos. | Part number | Description | Qty |
|---|---|---|---|
| PM 183 379 -T | Operating fluid reservoir | ||
| P 4131 007 D | Swiveling screw-fitting | ||
| PM 061 378 -X | Mating plug "remote" |
Positions and part numbers as printed in Pfeiffer Vacuum+Fab Solutions’s Instruction Manual HiPace 300 Plus with TC 400_EN_en, page 41 · view the source document
